Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network

Name: Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network
Brand: FURONG
Price: 1 USD

Wholesale Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network from china suppliers

Brand Name : FURONG

Model Number : GYXTW patch cord

Certification : ROHS

Place of Origin : Guangdong China

MOQ : 100pcs

Price : Negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 30,000 per month

Delivery Time : 3-10 working days after received your payment

Packaging Details : Per fiber optic patch cord will have Individual Plastic Poly Bag

Fiber Types : G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4

Optional Connectors : LC/ SC/FC/ST

Mode : SingldeMode, MultiMode

Insertion Loss : UPC< 0.2dB, APC<0.3dB

Return Loss (Back Reflection) : UPC>55dB, APC>65dB

Polishing type : UPC, APC

Jacket material : PE, LSZH

Cores : 2,4,6,8~144cores

Contact Now

Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network

Quick Details:

Type: Outdoor Fiber Patch Cord
Mode: Single mode and Multimode
Cable Fan-out: 0.5M, 1M
Ferrule End-face: PC, UPC, APC
Cable core: 2core, 4core, 6core...customized
Cable length: 1M, 2M, 3M….customized

Description:

Outdoor cable includes 2~144core bare fiber inside. The fan-out could be 0.9mm, 2.0mm and 3.0mm.

And the fan-out cable length is 0.5M or 1M.

Features:

High tensile coefficient and stress coefficient
Manufacture without damage to cable
Cost cutting for maintenance
Convenient for application, highly security
Application without damage to cable
Meets Telcordia End-face Geometry Requirements
Custom Configurations Available at No Extra Charge

Applications:

Telecommunication networks
CATV, LAN, MAN, WAN, Test &Measurement
Optical access network
Fiber optic communication networks

Specification:

Item	Single mode
Ferrule End-face	PC	UPC	APC
Insert attenuation	≤0.3dB	≤0.3dB	≤0.3dB
Return loss	≥45dB	≥50dB	≥55dB
repeatability	≤0.1dB	≤0.1dB	≤0.1dB
Operation temperature	-20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU)
Outer diameter	1.6mm

Technical Data

Parameter

Unit

FC, SC, LC

ST, MU

MTRJ, MPO

E2000

UPC

APC

UPC

APC

Insertion Loss

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return Loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Repeatability

≤0.1

Durability

≤0.2dB typical change, 1000 matings

Operating temperature

ºC

-20 ~ +75

Storage temperature

ºC

-40 ~ +85

Ordering Information

Connector	Fiber Core	Cable Diameter	Fiber Type	Polishing	Cable Jacket	Cable Color	Fiber Length
LC SC FC ST D4 MU DIN SMA MPO MTRJ E2000	Simplex Duplex	0.9mm 2.0mm 3.0mm	SM:9/125um MM:50/125um MM:62.5/125um OM3	PC UPC APC	PVC LSZH	Yellow Orange Aqua others	1M 2M 3M 10M 20M 30M

Our advantage
1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network

Product Tags:

fiber optic jumper cable

fiber optic patch cables

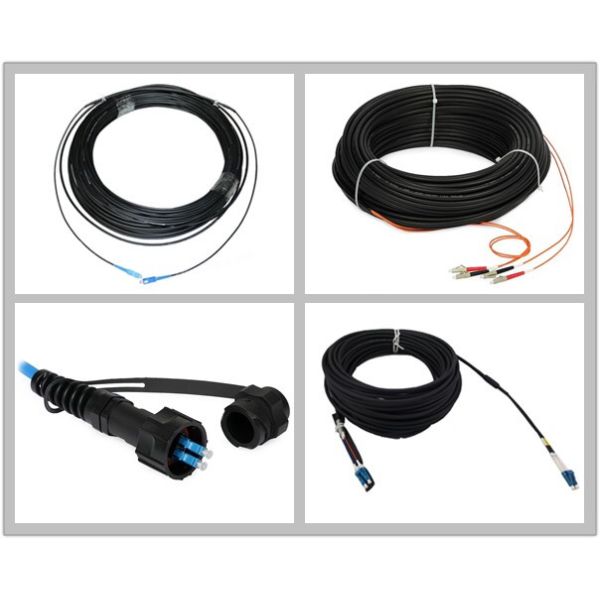

Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network Images
